Two easy approaches to leverage your C++ OOP design skills.

Coupling is usually contrasted with cohesion. Low coupling often correlates with high cohesion, and vice versa. Low coupling is often a sign of a well-structured computer system and a good design, and when combined with high cohesion, supports the general goals of high readability and maintainability. The goal of this case study is to show the benefits of loose coupling and high cohesion, and how it can be implemented with C++. The case study consists of designing an application that accesses a file in order to get data, processes it, and prints the result to an output file.

Solution with a lack of design

For this first design  only one  class named CDataProcessor is used to:

  • Get data from a file.
  • Process the data.
  • Print the result.

And the main method invokes the methods of this class.

Drawback of this solution

  • Low cohesion: The CDataProcessor class has many responsibilities, so we can’t easily reuse the algorithm in other applications.
  • High coupling: the processing is high coupled with the console and also with the data provider.

Design refactoring

High cohesion

To improve the cohesion, each responsibility must be assigned to a different class, so we need three classes:

  • CFileProvider: To get data from a file.
  • CDataProcessing: To process data, and this class can use other classes to complete the processing, but to simplify the design, we consider that’s sufficient for our processing.
  • CResultReporting: To report result to a file.

So each class has its own responsibility. The advantages of this design are:

  • Easy to understand the classes.
  • Easy to maintain.
  • Easy to reuse the classes in other applications.

Low coupling

What happens if data exists in a database rather than a file? In our last design, our application is high coupled with a file provider.

To resolve this problem, we need an interface that provide methods to get data from anywhere, and for the case of the file, we need a class that implement this interface.

For that, using NVI can be good solution. This pattern is more useful than using only abstract classes because it’s possible to define a pre- and post-condition. It’s a useful object-oriented programming technique, particularly at development time. Pre- and post-conditions ensure that invariants of a class hierarchy (and in general, an abstraction) are not violated at designated points during execution of a program.

In our case, we can add the IDataProvider interface.

And CFileProvider inherits from IDataProvider to implement GetDataFromImpl, and the same design can be used for CDataProcessing and CReportResult.

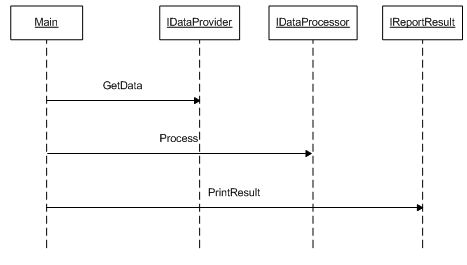

Here’s the new collaboration between the classes after refactoring:

Class factory

In the latest design, the creation of the concrete instances of IDataProvider, IDataProcessing, and IReportResult are created by the main method. A better approach is to assign this responsibility to a factory class, so a logic to instantiate a family of instances needed is isolated.

Controller

The orchestration between all classes is implemented in the main method. It’s better to assign this responsibility to a Controller class, so we can use it in other applications.

The controller needs three classes to interact with them, so the question is how do we bind instances to the controller.

We can bind the instances using these two approach:

    • Add a method named  BindInstances(IDataProviderPtr,IDataProcesingPtr,IReportResultPtr).
    • Define the Controler as template and the controller will be instantiated like that:
CController<CFileProvider,CDataProcessor,CConsoleReport>

The difference between the two solutions is that for the first one, each Data Provider must inherit from IDataProvider, and for the second one, CFileProvider only needs the method GetData(Data&) even if it’s inherited from another class than IDataProvider.

There are many discussions between C++ gurus about using OOP or templates. Here’s a good article about this tension between the two approaches.

Here’s the new collaboration between the classes after the refactoring:

Benefits of the refactoring

After refactoring, this application became more flexible and we can use it for different scenarios:

  • Can get data from file, database, XML file, CSV file, …
  • Can process with many classes not just one.
  • Can report to console, file, …
